Fullyboy Posted January 12, 2021 Posted January 12, 2021 Is there any way to add a image overlay to the table to make creating my tracks easier?

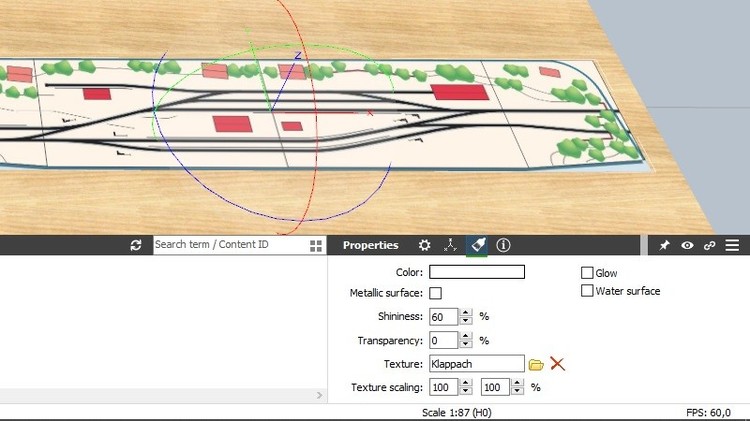

Goetz Posted January 12, 2021 Posted January 12, 2021 (edited) Hi Fullyboy, one way is as such: in the category "extra -> primitives" you'll find an object named "Ebene" Basically a flat square. Place this on your layout. In the properties menu of this object, select the cog wheel to edit the dimensions. Make them match your image aspect ratio select the brush symbol to enter the texture submenu. click on the yellow folder icon to open a bmp, jpg or png file. If you're off scale, resize the plane in the position submenu Hope that helps? Goetz Edited January 12, 2021 by Goetz changed description in parts after reading Henry's post following hereafter
Henry Posted January 12, 2021 Posted January 12, 2021 Hi Fullyboy, in addition to Goetz let me give a note: vor 49 Minuten schrieb Goetz: n the category "extra -> primitives" you'll find an object named "Ebene" Create a screen shot of your layout design and save it under a name. It does not matter what scale the image is. Create a "Ebene" with the dimensions of your desired base plate. Place the screenshot on the "Ebene". This scales the picture approximately to the real size. This is enough to make your design true to scale. The size of the "Ebene" determines the final size of the template. hope it helps to understand the work around, Regards, Henry
