Cockpit camera

Recommended Posts

HI

Can anyone tell me pls. what contactpoint and how I have to place it inside the cockpit of my selfmade train in Sketchup Pro 2018, so when I enter the train in TS4 in the cockpit to ride along, i see the view like in the picture.

THX


Share this post


Link to post
Share on other sites

Hi,

i can only show you how to to in Blender... but the basic procedure in sketchup is the same...

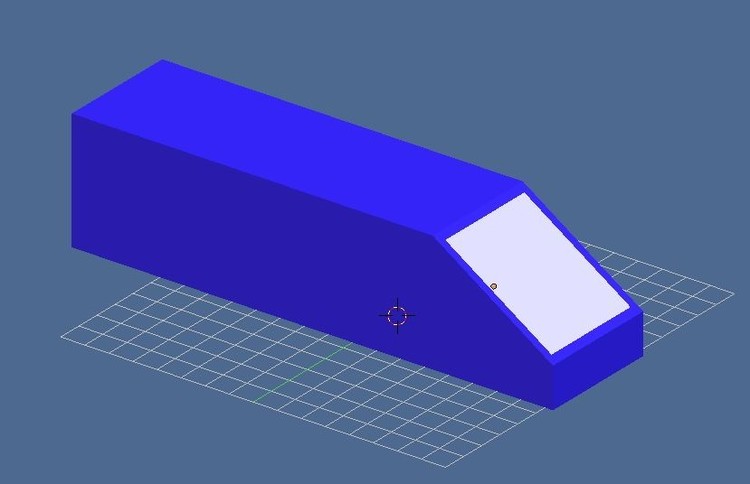

Make a model of the train... and export it as .x file (i,e. Train.x)

Make a model of the cockpit...

....  within this model there must be an object (i think in sketchup it is a "group") named "_CCP" (Cockpit-Camera-Position)...
(...
it represents the point from which it is seen   when you "enter cockpit" in TS4)
Note: This object will not be shown in TS4... so you can use anything (i.e. a cube)

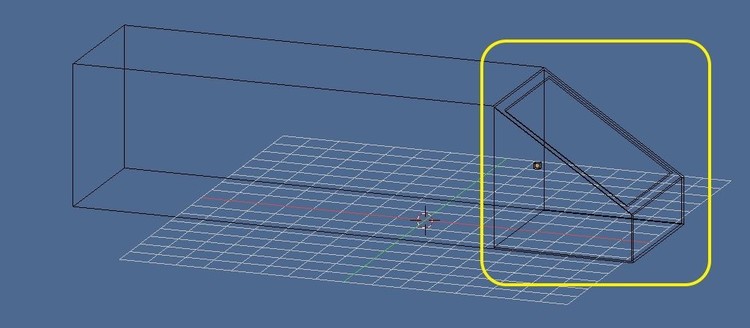

... the position of the model "Train-cockpit" based an the model "Train"...

Note: you are looking from inside out! (normals of your faces)...

... and export it as .x file (i.e. Train-cockpit.x)

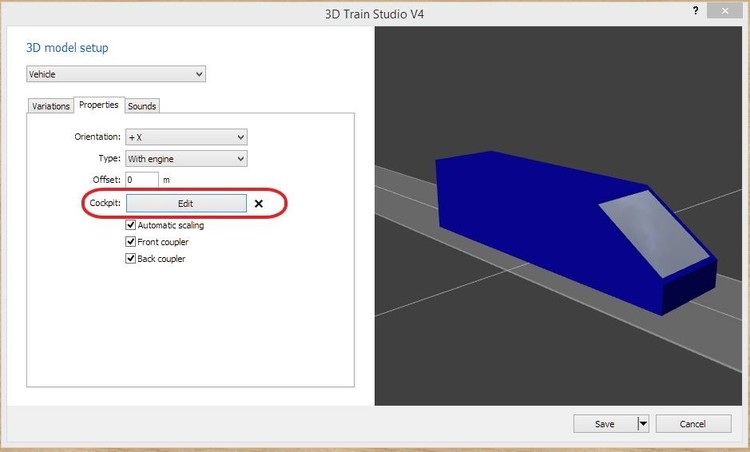

Import it in TS4 to the catalog as "Vehicle"...

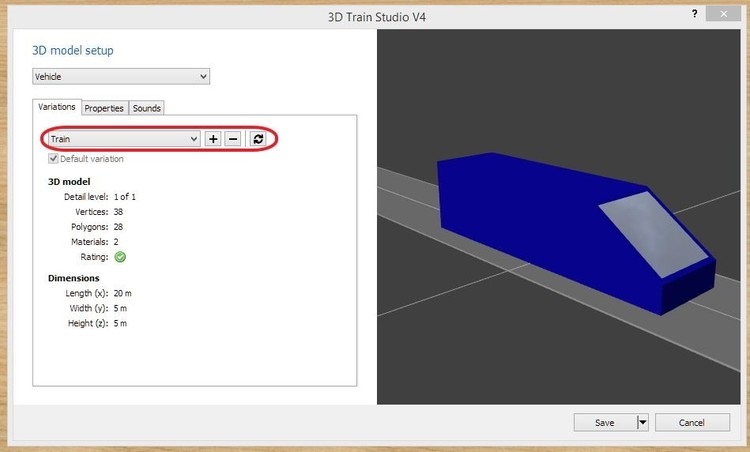

... choose here "Train.x"...



... and here "Train-cockpit.x" (... note the name will not be shown... but i do not know why)


In TS4 the train...

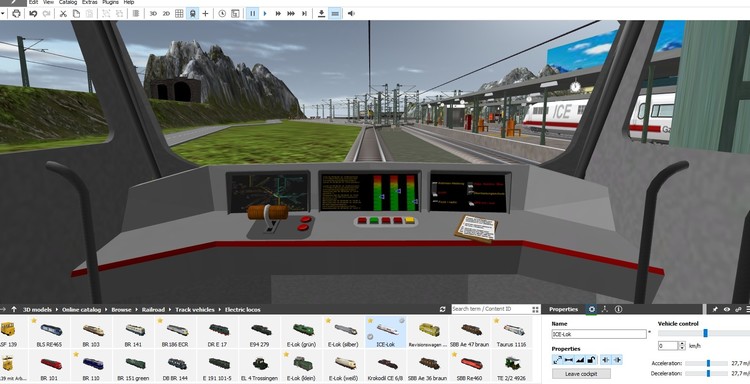

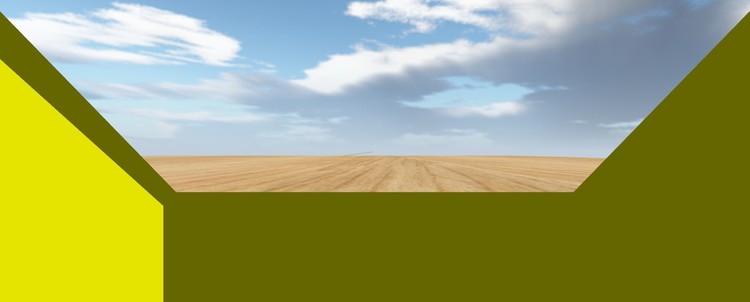

... and the cockpit view...

... hope you can understand and it helps you...

Regards
EASY

Edited by EASY

Share this post


Link to post
Share on other sites

Hi @raf.sonneville,

as Sketchup modeler, I have not yet any experience with creation and mounting of cockpit models. But I think, that @EASY is quite right with his assumptions for Sketchup use. Especially, all sub-models which should be identified as separate frames within the x-file, must be defined as separate groups in the Sketchup model. This is also true for the "_CCP"-Model.

Many grettings
BahnLand
