I have a problem when making a street that has to be a spline in TS4 that can be flexible bend.

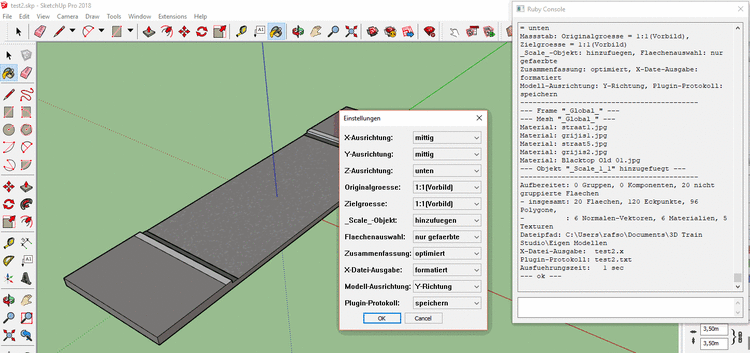

I made the piece in Sketchup Pro 2018, but when I make it into an X file and bring it in TS4 then it seems of lot of the faces can't be seen anymore.

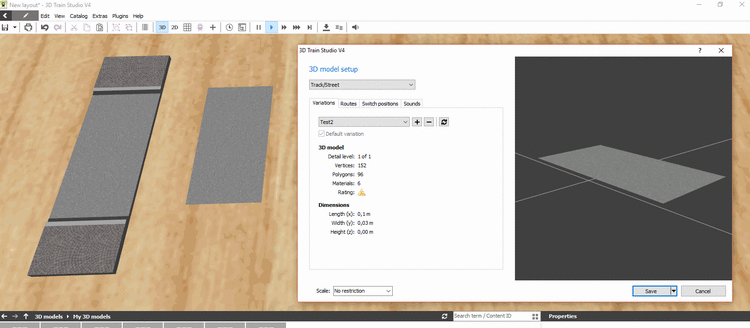

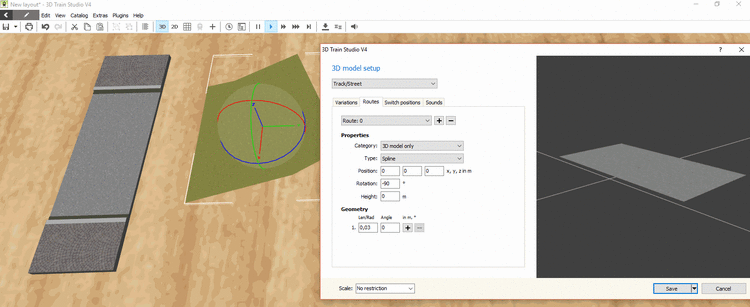

You see two pieces. On the left what it should look like, and the one on the right is the spline version.

I can bend the piece as you can see in the third picture.

Can you help me please?

See the pictures.

THX




Link to comment
Share on other sites

Hello Raf,

your model contains 6 materials (including 5 textures). But a spline model must contain only one single material (see here in the Wiki):

Spline - Das 3D-Modell wird entlang der Spur gebogen. Unterstützt werden dabei nur 3D-Modelle, die aus maximal einem Material bestehen und nicht animiert sind. 3D-Modelle für Splines werden entlang +Y gebogen.

Spline - The 3D model is bent along the track. Only 3D models are supported that consist of a maximum of one material and are not animated. 3D models for splines are bent along +Y.

Many greetings
BahnLand

Link to comment
Share on other sites

Thx for the help. Worked. I used more than one material. That was the problem.

I only have one problem left. What kind of _CP contact points do I use on the spline so it connects to existing non-spline road pieces I made myself?

Cos now it seems to each time rotate 90 degrees when I connect to the existing one. See the picture. If I add a contact point or not, it has the same effect.

Thx


Link to comment
Share on other sites

Hello Raf,

I have seen in your 1st picture that the spline direction of your model is not equal to the y-axis.


But this is necessary for spline models so that thay will by correctly aligned along the spline track. So, you must rotate your sketchup model by 90°, so that it especially can correctly connect with other street elements.

Many greetings
BahnLand



Link to comment
Share on other sites

Hi guys

Thanks for the help so far. Its all better now, however I still have a problem.

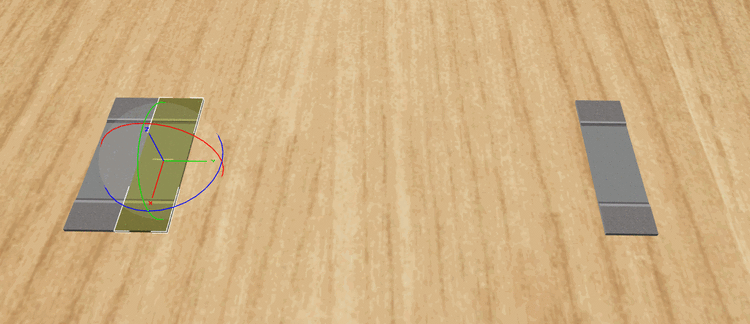

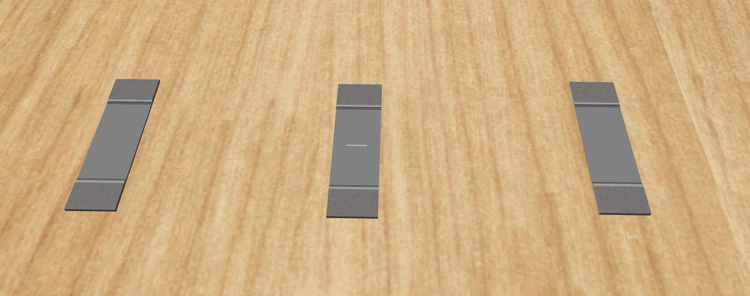

In the first pic you see 3 pieces. The left and right are the same static piece. The middle one is the spline.

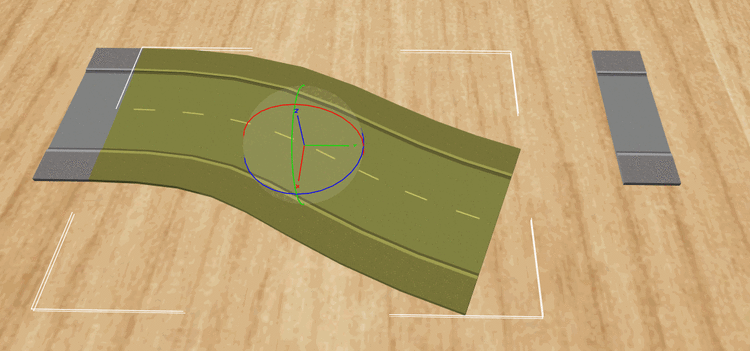

In the second pic you see I can connect the spline perfect to the left piece.

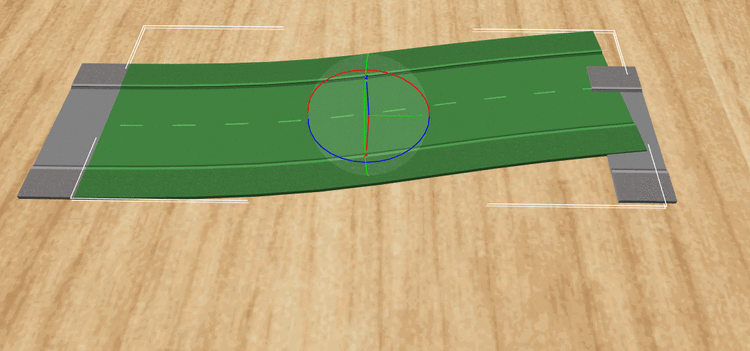

In the third pic you can see I can bend the spline perfectly also.

BUT …. In the fourth pic you can see that when I bend the spline I cannot connect to the right piece.

What is the problem here now ?

Thx in advance and sorry for asking all the time.

greetz





Link to comment
Share on other sites
