nikfincher

Hornby and Bachman track

Recommended Posts

I would like to make a request for Hornby and Bachman track to be added.

Especially the crossings R614 and R615.

Most other track can be substituted from PECO, but not these.

Does anyone know if I can substitute these from other tracks?

Sorry, I see I put this in wrong thread, but dont know how to move.

Edited by nikfincher

Share this post


Link to post
Share on other sites

Hi nickfincher,

I will setup this H0-track system. Please be patient,

Regards, Henry

Share this post


Link to post
Share on other sites

Hi nikfincher,

I have setup the Hornby H0(=00) tracksystem. Neo must release the tracks in the catalogue.

Hornby H0 code 100.jpg

Please report track mismatches.

Regards, Henry

P.S. I will check the Peco code 100 system soon.

Edited by Henry

Share this post


Link to post
Share on other sites

thanks Henry, very much appreciated.

Dont understand comment about Neo and catalogue. Guess I shall find out. :-)

Share this post


Link to post
Share on other sites

In SCARM's list of Hornby track there is a straight labelled X918 and length 82.4mm.

I dont know if this is official Hornby or not.

It is very useful.

Share this post


Link to post
Share on other sites

Hallo Henry, Hallo Leute

wenn bei den Weichen R8077/R8078 ein Gleisabstand von 67mm bei einer Abspreizwinkel von 11,25° erreicht werden soll, dann gehört der Radius auf 777,58mm und die Länge2 auf 95,13mm geändert.

VGaÖ

Vermanus

Share this post


Link to post
Share on other sites

Hallo Vermanus,

Zitat

... R8077/R8078 ein Gleisabstand von 67mm bei einer Abspreizwinkel von 11,25° erreicht werden soll ...

ja, was ist, wenn das garnicht so vorgesehen ist ?

Bevor wir nun anfangen zu spekulieren, hätte ich gerne einen Gleisplan mit den genannten Weichen. Es läßt sich zwar vieles hinrechnen, jedoch sollten die Angaben des Herstellers nicht unbeachtet bleiben und müssen immer im Gesamtzusammenhang betrachtet werden. Im Moment verwende ich für die Weichen R8077/R8078 die Maße, die in anderen Planungsprogrammen gleichlautend mit dem Hersteller angegeben werden. Die müssen auch nicht richtig sein --- also ist Vorsicht bei voreiliger Änderung geboten !

Ausserdem ist nicht geklärt, unter welchen Umständen das Gleis R610 verwendet wird. Auch hier fehlt ein verbindliches Beispiel, auf das ich mich beziehen könnte.

HG, Henry

Share this post


Link to post
Share on other sites

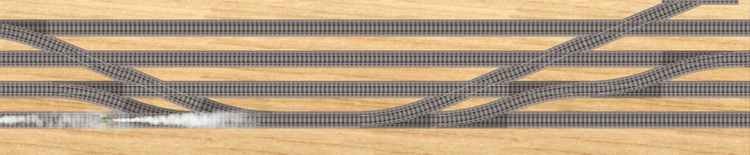

There seems to be a big problem with the crossings R614 and R615.

And a smaller problem with the switches R612 & R613 (and/or R8072 and R8073. Havent figured the difference between these pairs)

I have laid out a large quadrangular layout (40xR600 per side. And four-tracks abreast.)

When the 4 tracks are connected just by switches, there are some slightly offset joins. But trains can pass over them.

When the 4 tracks are connected by crossings and switches, trains cannot pass the offset joins.




Share this post


Link to post
Share on other sites

Thanks for the report,

it is possible that the original dimensions were given in "inch" and reported in "mm". I will try out the (rounding?) differences. I guess, that the basic length ist 167,5 mm instead of 168 mm because the double length is 335 mm

X918 is part of the turntable, the length was reduced to 30mm instead of 83,5mm because 53,5 mm are included in the 3DMTS turntables dimension.

regards, Henry

Share this post


Link to post
Share on other sites

Hallo Henry,

2xR610 + 1xR618 ergibt ungefähr die Länge R8077/R8078. Mit meinen Werten lässt sich so ein perfektes Gleisbild auflegen. Im übrigen habe ich auch von anderen Planungsprogrammen Gleisangaben für Kleinbahn gefunden. Die waren aber gerade speziell bei den Weichen und Kreuzungen zu ungenau bzw. falsch und daher nicht zu gebrauchen.




Share this post


Link to post
Share on other sites

thanks Henry and Vermanus.

i dont speak German so dont know what was said.

i tried the diagram for crossings not swiches.

and it does not seem to work.

below is a segment of what i am trying to do.

in AnyRail.

note circles indicating a successful join.




Share this post


Link to post
Share on other sites

Hi Henry,

see this link for details and detailed pics of hornby track

note that the straights are merely lip-service to quarter, standard etc. measurements are different. 38,168, 335, 670

http://www.newmodellersshop.co.uk/Model Railway/Track.htm

R610 Quarter straight (38mm) 38
R600 Standard Straight   (168mm) 168
R601 Double Straight      (335mm) 335
R603 Long Straight (670mm) 670

Hope this helps.

the pics should help for crossings and switches.



Edited by nikfincher

Share this post


Link to post
Share on other sites

I am reaally puzzled.

the problem seems to be with the non-168mm parts of switches and crossings.

but it seems sometimes they fit, sometimes too short, sometimes too long.

hope you are able to resolve.

Share this post


Link to post
Share on other sites

Hello ,

the problem lies in the indication of the intersections : 84mm (168mm) long , 22.5 ° abduction and 33.5mm  (for 67mm track distance) do not work. (Trigonometry right triangle) .

VGaÖ

Vermanus

Share this post


Link to post
Share on other sites

Hello, I think the real lengths are different to the described lengths. Example: Standard Straight = 168mm, Quarter straigth = 38 (instead of 42mm) ??? So I would like to know the exact real length of the standard straight track - and from this we can calculate the rest tracks. Regards, Vermanus.

Share this post


Link to post
Share on other sites

I am pretty certain that the terms 'quarter', 'double' are 'notional'.

The exact lengths are 38, 168, 335, 670.

I live in Indonesia with no access to the actual track. So I shall do a web search to see if I can find out more.

Nik

Share this post


Link to post
Share on other sites

Hi Henry & Vermanus,

Are the switches and crossings being fixed?

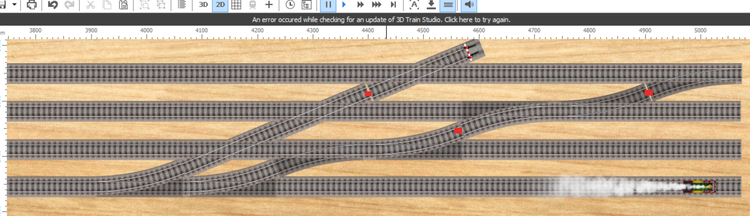

Below is another demo of problem.

2 switches and 1 crossing stop trains passing at end of quadruple run of straight.

2 other things.

a. on this picture you will see it says update failed, click here.

when i do so it takes me to the download page forif you newly get the software. Is this correct? my computer tells me I have already downloaded.

b. Can I request the Hornby track R636 double level crossing. even if only displaying track. The reason is that this piece is very useful for setting the 'correct' width, 67mm, between straights. to match up with the correct width, 67mm. between different radius curves.

Thx

Nik


Share this post


Link to post
Share on other sites

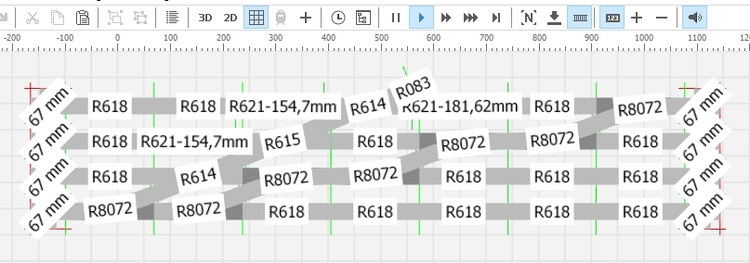

yuk dont like that at all.

having to use flex track where standard should work.

and two different lengths.

i thought giving you the exact standard length would cure this.

6 and 5/8 = 6.625 inches = 168.275mm

Share this post


Link to post
Share on other sites
